Technical Data:
| Model No. | DH-JSD001F |
| Input Voltage | 110V / 220V AC |
| Power | 36W |
| Kelvin Temperature | 5000K |
| Lumens | 3060lms |
| Lumens Efficacy | 85lms/W |
| URG | ≤19 |
| CRI | ≥95 |
| Power Factor | 0.95 |
| Lifetime | 50,000 hrs |
| Dimension | 295*1195*50mm |
| Material | Steel/PS |
Features:
- Superior Anti-Glare Performance (UGR < 19)

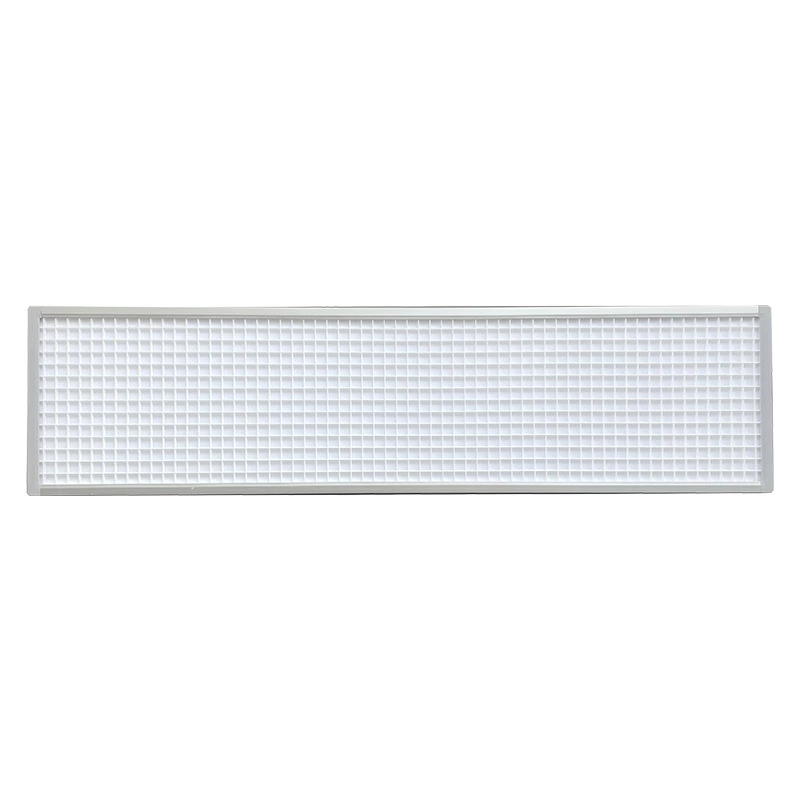

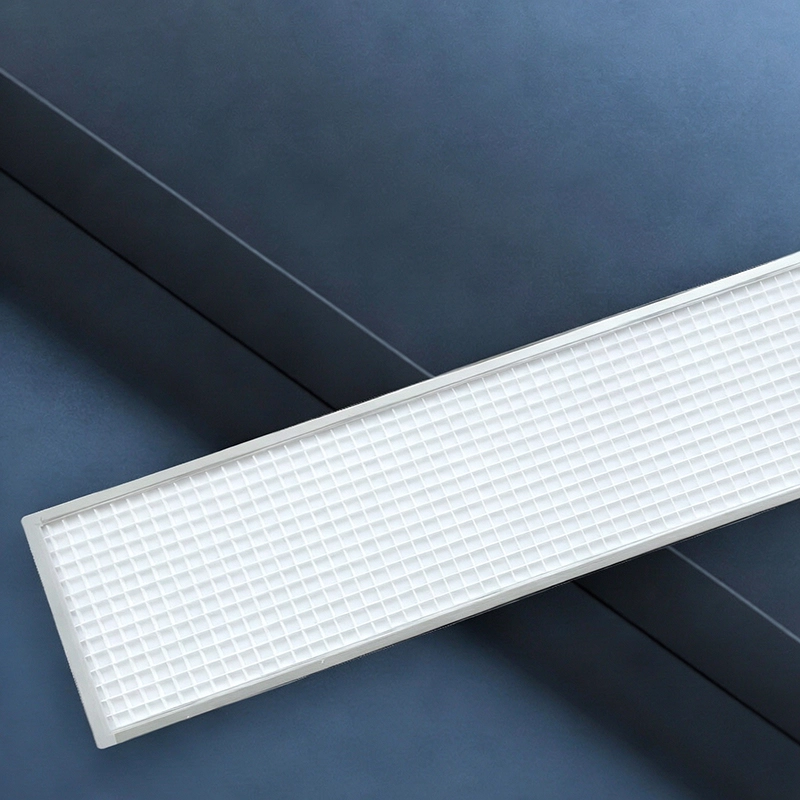

The precision square-grid micro-prism structure suppresses high-angle light and controls glare at the source, keeping UGR below 19 to meet office and classroom lighting standards.
- Uniform, Shadow-Free Illumination

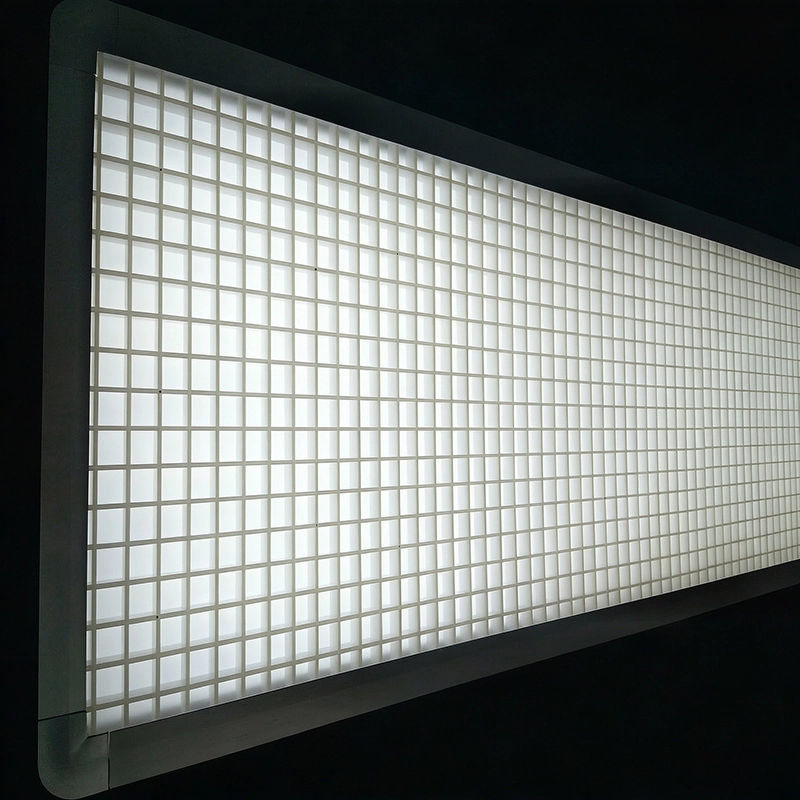

The grid diffuses light evenly across the entire panel, eliminating hotspots, dark zones and visible LED dots for smooth, comfortable brightness.
- Higher Light Efficiency, Not Lower
Unlike traditional louvers that sacrifice brightness, the engineered grid redirects light into the target area and boosts center intensity — glare control without wasting lumen output.
- Reduced Eye Strain for Long Working Hours
Soft, flicker-free light with balanced distribution eases visual fatigue, making it ideal for reading, studying, office work and other extended near-vision tasks.
Application:
Schools
Libraries
Study rooms
Research Institute
