LED Explosion-proof Light 50-300W-R

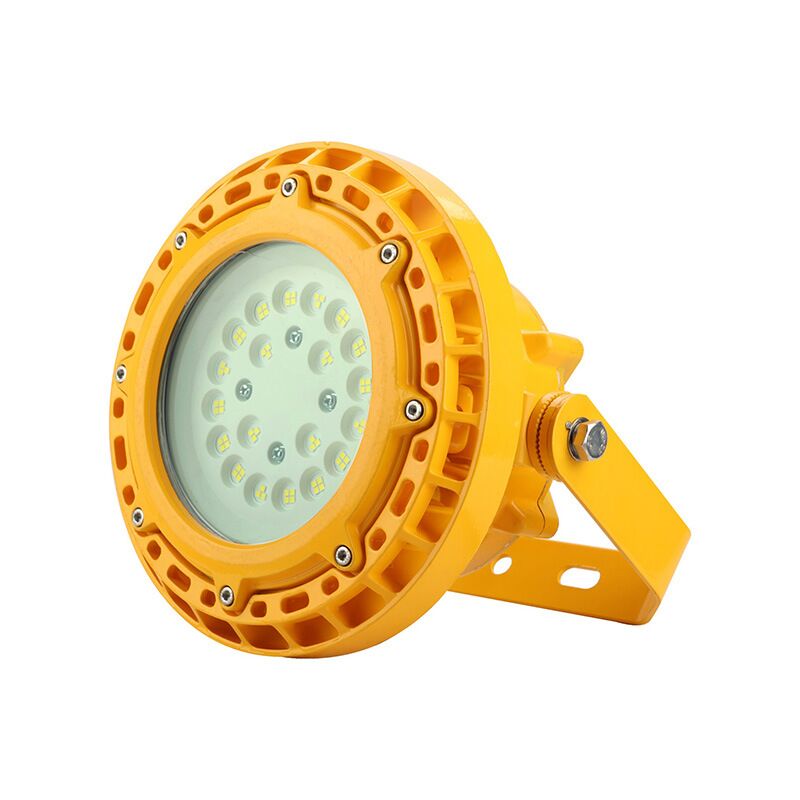

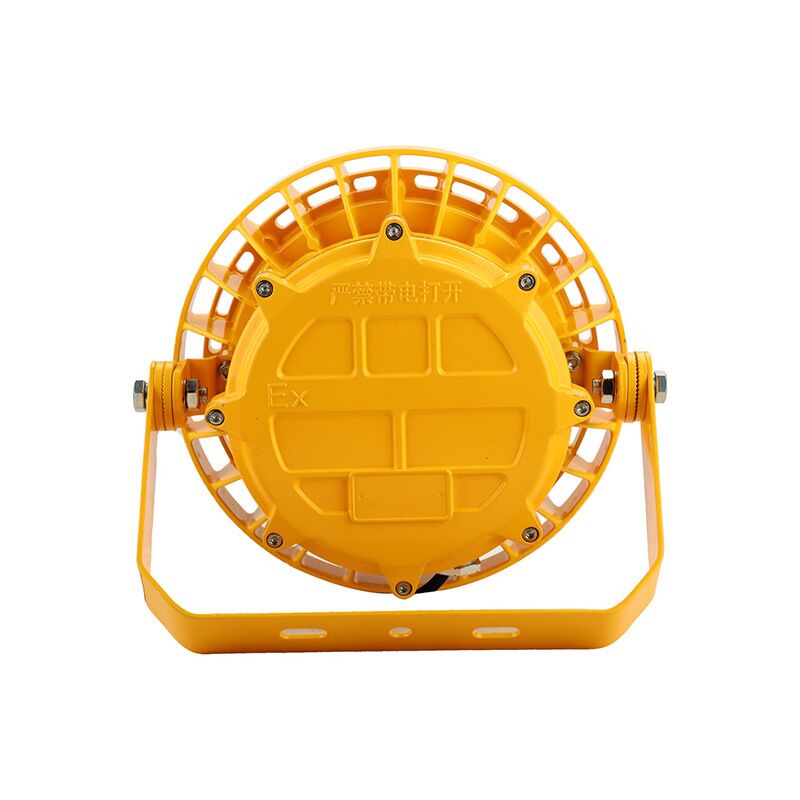

The LED explosion-proof lights are manufactured strictly in accordance with relevant standards and can work safely in flammable and explosive places. It adopts high-efficiency LEDs and drivers which can work in harsh and heavy industrial environment. It can save 60~90% electricity compared with traditional lamp. The protection rate is IP67 with all sealed inner parts. WF2 outdoor anti-corrosion grade, suitable for all types of highly corrosive sites. Its dense cooling fin design improves the airflow for greater heat dissipation and makes the lifetime longer

Category LED Explosion-proof Light

Share to:

Description

Technical Data:

Model No.	DH-FB9210	DH-FB9211	DH-FB9212	DH-FB9212	DH-FB9213
Input Voltage	100-277V AC 50~60Hz
Power	50W	100W	150W	200W	300W
Lumens Efficacy	120lm/W	120lm/W	120lm/W	120lm/W	120lm/W
Lumens	6000lms	12000lms	18000lms	24000lms	36000lms
Explosion-proof Signs	Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db
IP Rate	IP67
CRI	≥70
Anti-corrosion level	WF1/WF2
Lifetime	50,000 hrs
Dimension	Φ274x147mm	Φ304x149mm	Φ376x159mm	Φ376x159mm	Φ391x161mm
Material	First-class Aluminum

Features:

Fine materials and high technology are adopted, it can work safely in flammable and explosive places
High efficiency LEDs and drivers makes the quality more stable
60~90% electricity can be saved
Protection rate is IP67
Anti-corrosion grade is WF2
Long lifespan with perfect dense cooling fin design

Application:

Chemical factories

Mine field

Factories that use coal or oil as fuel

Warehouse
