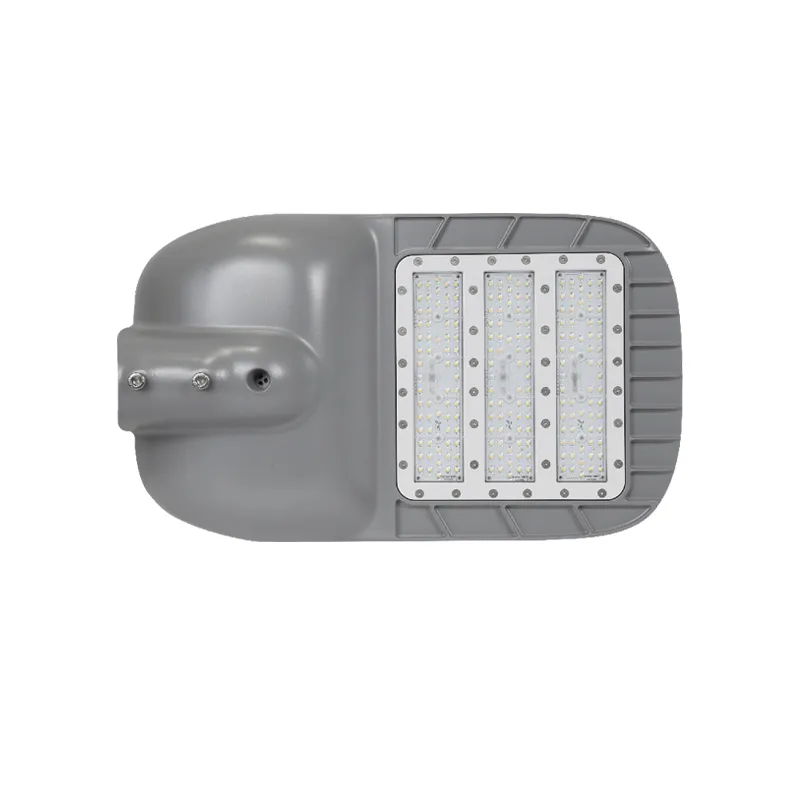

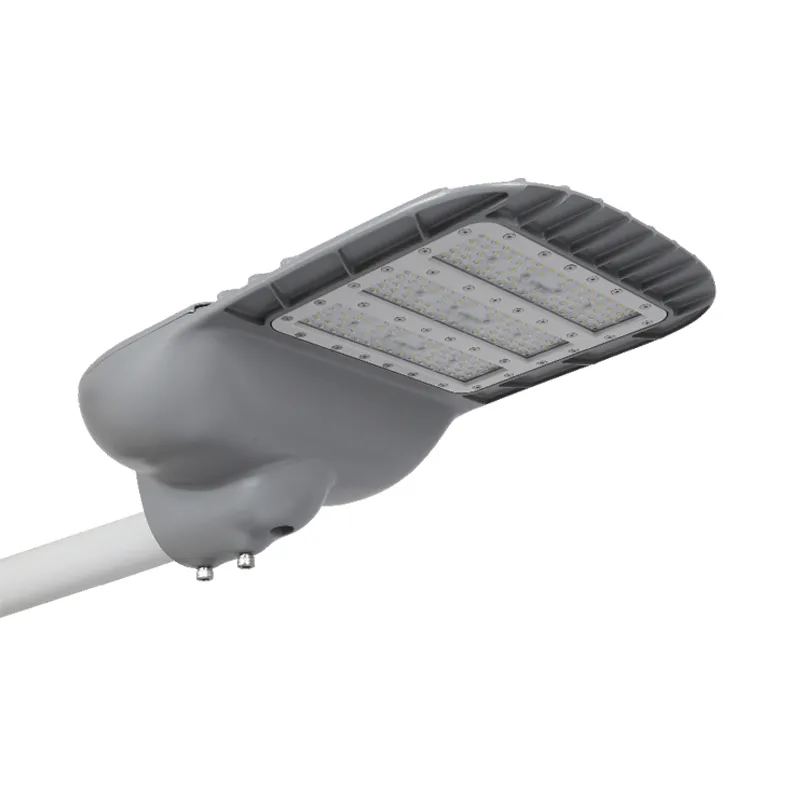

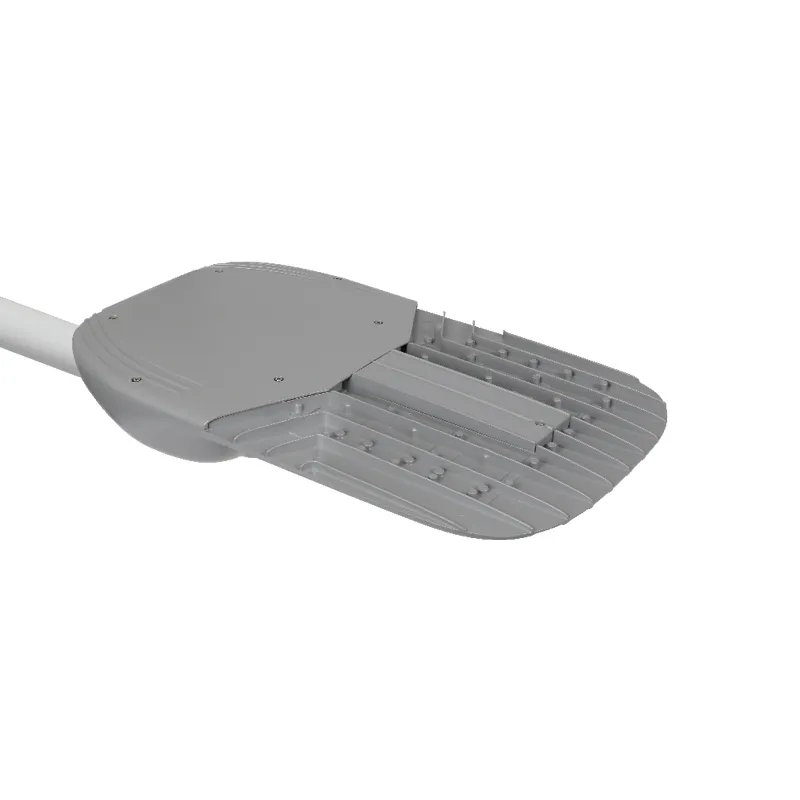

LED Street Light

The 80-240W led street lamp is designed with ergonomic light distribution, having uniform illuminating effect. Its heatsink is perfect with fine die-casting aluminum and cooling technology. It adopts high-quality LED chips and drivers. Both LED modules and driver modules are pluggable, tool free for onsite maintenance. Besides, the lamp has high protection level of IP68 and high impact protection grade IK08

Category LED Street Lamp

Share to:

Description

Model No.	Power	Input Volt.	Lumens Efficacy(lm/W)	Lumens	Power Factor	CRI	Color Temp.	Product Size
DH-T33C	80W	100-240V AC	160lm/W	12800lms	0.95	Ra≥70	3000K-5700K	495x340x175mm
	100W	100-240V AC	150lm/W	15000lms	0.95	Ra≥70	3000K-5700K	495x340x175mm
	120W	100-240V AC	140lm/W	16800lms	0.95	Ra≥70	3000K-5700K	495x340x175mm
DH-T33D	120W	100-240V AC	160lm/W	19200lms	0.95	Ra≥70	3000K-5700K	570x340x175mm
	150W	100-240V AC	150lm/W	22500lms	0.95	Ra≥70	3000K-5700K	570x340x175mm
	180W	100-240V AC	140lm/W	25200lms	0.95	Ra≥70	3000K-5700K	570x340x175mm
DH-T33E	160W	100-240V AC	160lm/W	25600lms	0.95	Ra≥70	3000K-5700K	655x340x175mm
	200W	100-240V AC	150lm/W	30000lms	0.95	Ra≥70	3000K-5700K	655x340x175mm
	240W	100-240V AC	140lm/W	33600lms	0.95	Ra≥70	3000K-5700K	655x340x175mm

Features

Excellent heatsink with fine die-casting aluminum and whole structure cooling technology
Double-coupling IP68 protection, highest waterproof level
Ergonomiclight distribution design to achieve uniform illuminating effect
Flip chip technology, single unit’s damage doesn’t affect other units’current
Multi-circuit constant current driver, single module hot-pluggable
Modular pluggable technology, tool-free onsite maintenance
