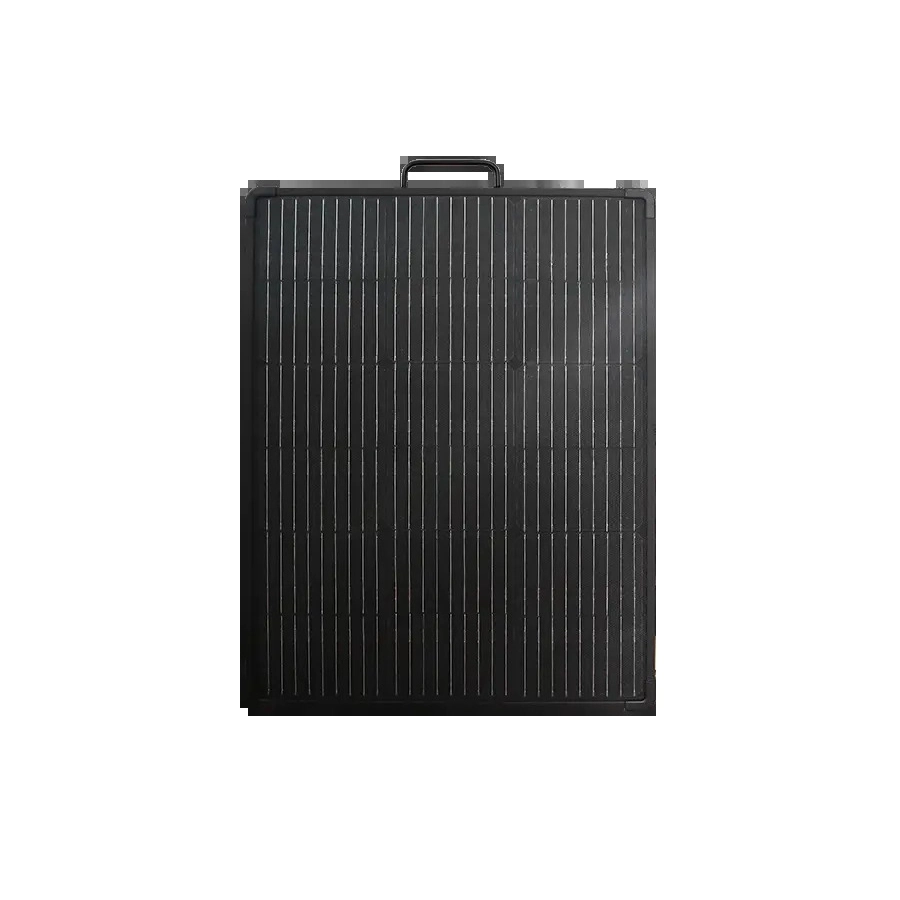

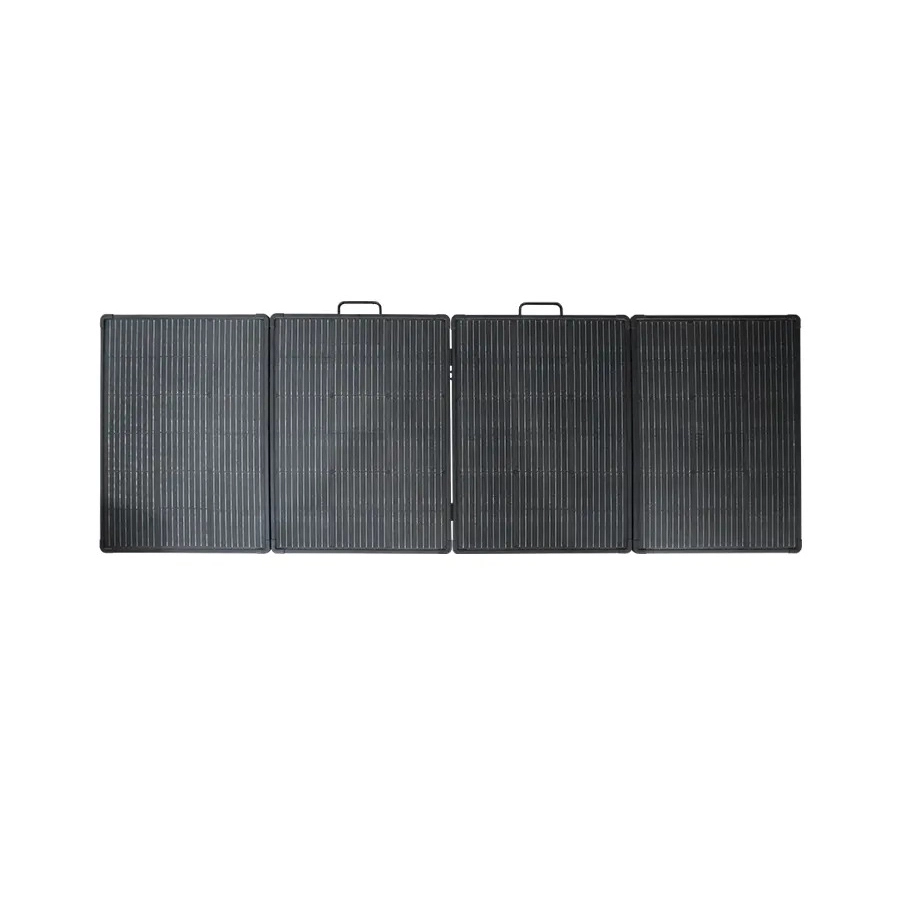

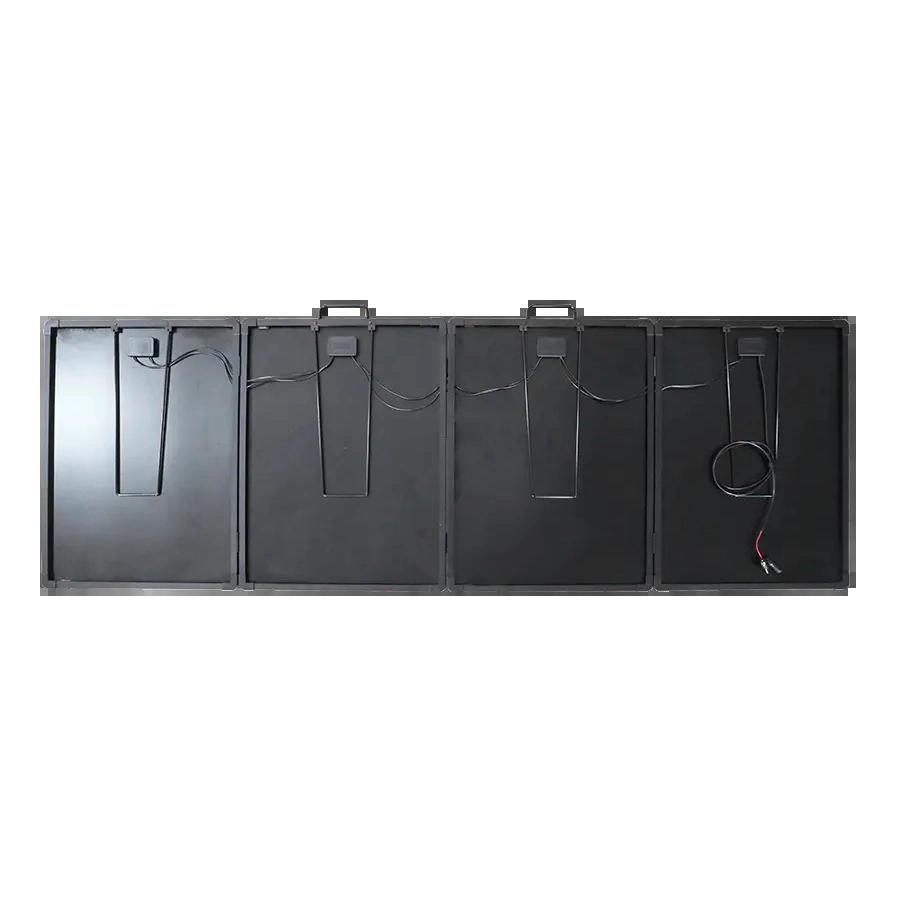

300W Foldable Solar Panel Portable Easy to Carry Quick Setup

Our 300W Foldable solar panel adopts high efficiency mono-crystalline solar cells. Its efficiency reaches up to 22.5%~23.5%. With ETFE surface, it can offer stable solar power in harsh environment like marine and desert, or wet area and even cold places. The 300W Foldable solar panel has safe performance with in-line fuses to protect the deep cycle battery and electric appliance. It uses heavy duty clamps and Anderson style plugs to ensure stable solar power transferred between the solar panel and the battery. It is also equipped with an external voltage regulator to monitor the charging status. Portable solar panel, convenient mobile life!

Share to:

Product Features:

  • Foldable Design, convenient to open and fold. Easy to carry
  • Exquisite structure, Aluminum alloy frame and stable supporting leg realize a good tilt angle
  • Light weight, Glass-free. The weight is relatively light with thin aluminum frame
  • Long lifetime, ETFE Surface and Aluminum frame encapsulate solar cells inside to ensure a long lifetime
  • IP65 Waterproof, can be used in harsh environment



Technical Data:

Model No. DH-CSST-300W
Power 300W
Open Circuit Voltage (Voc) 22.42V
Short Circuit Current (Isc) 17.37A
Maximum Power Voltage (Vmp) 19V
Maximum Power Current (Imp) 15.79A
Maximum Series Fuse 10A
Cell Efficiency 22.5%
Connector MC4
Open Dimension 2363*764*20mm
Fold Dimension 588*764*80mm
N.W. 8.4KG
